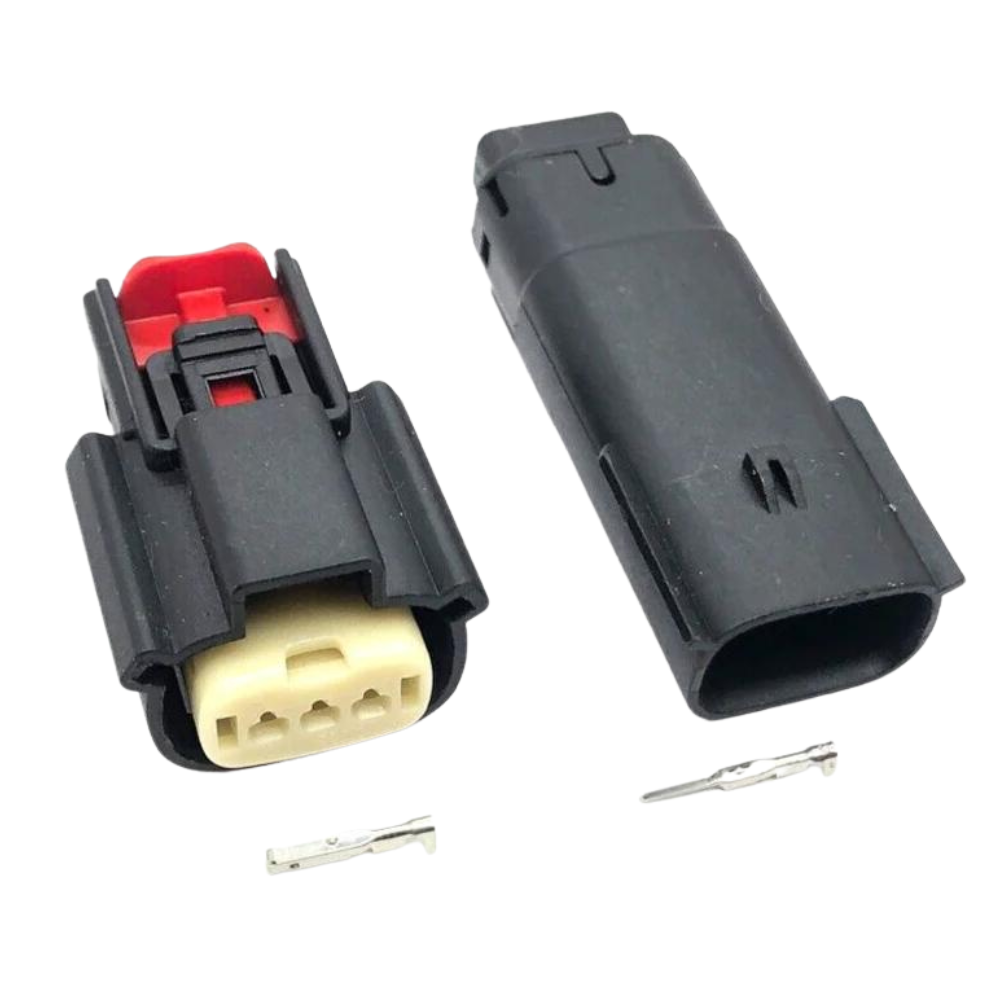

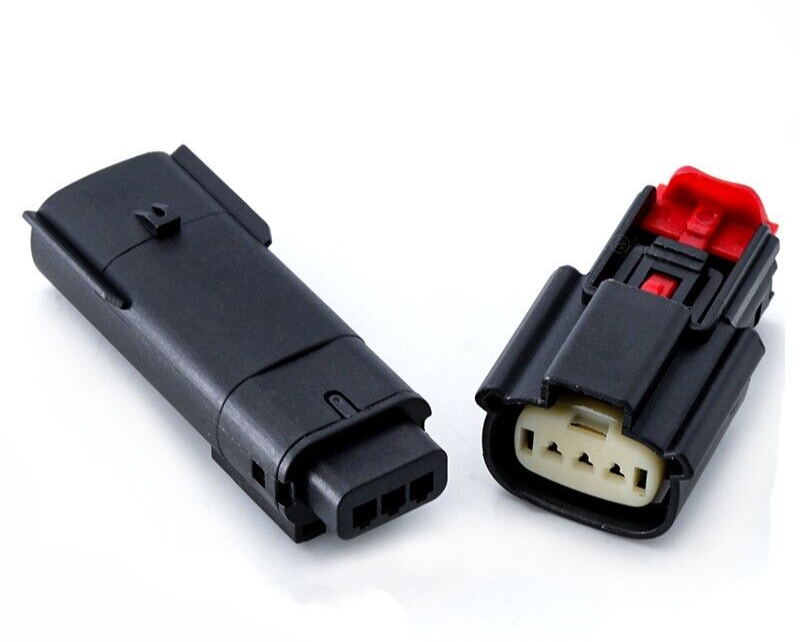

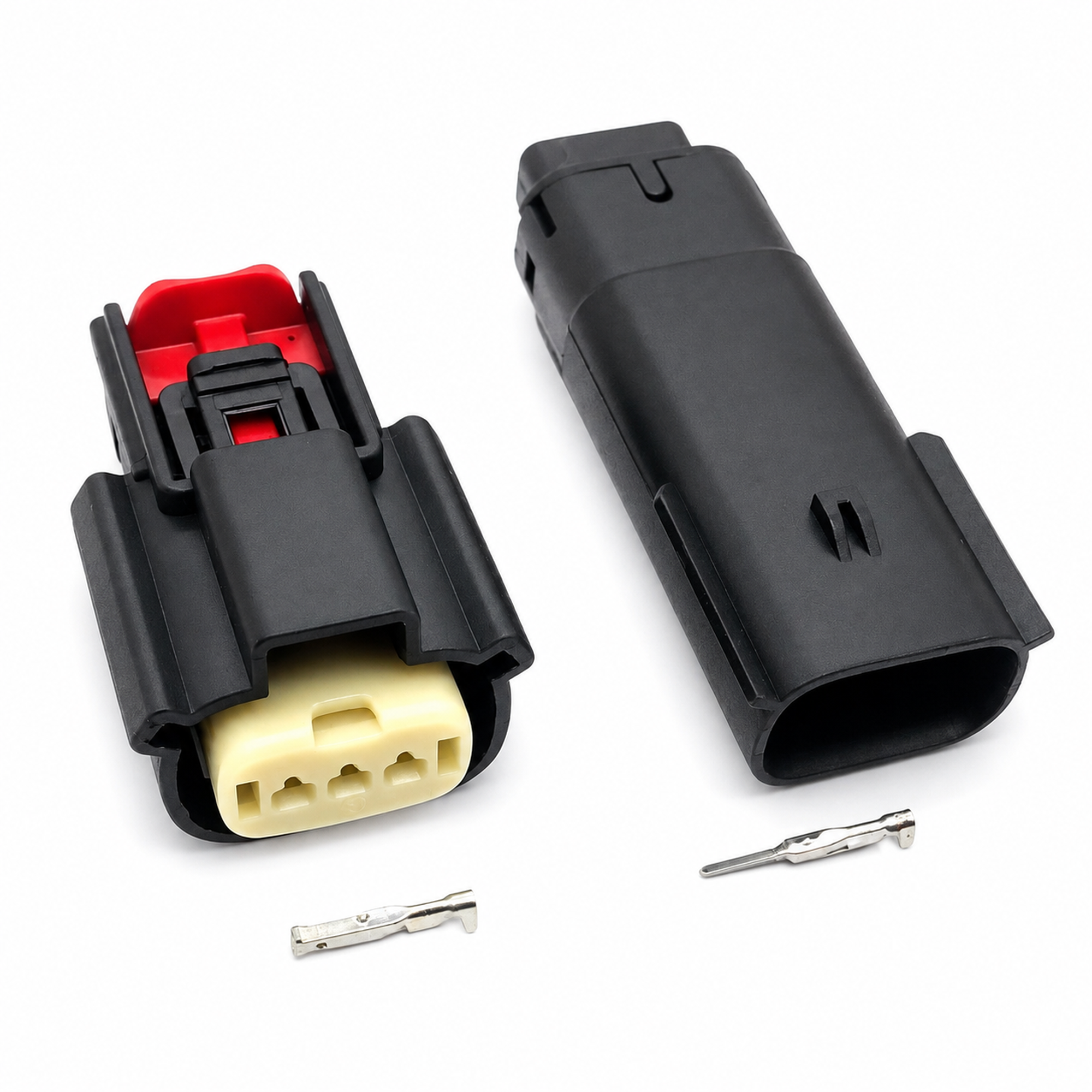

MOLEX 3 PIN WIRE CONNECTOR, HARLEY BLACK WATERPROOF, SEALED KIT, MX150 WITH CPA
Description:
MX 150 Sealed Connectors waterproof, environmentally sealed interconnection system is designed to withstand harsh weather conditions. It also accommodates a wide range of SAE and UL insulated wire styles. Since each sealed connector housing comes pre-assembled with all components, no additional wire seals, wedge locks, or CPA locks are required. The easy to use and cost effective MX150L is not only ideal for automotive, marine, off-road, construction, and agricultural equipment but also suitable for truck, bus, and RV applications.
Specifications
Molex MX150 Sealed Single Row 3-Pin Connectors
Category: MX150 Connectors
Series: MX150
Component Type: Male Terminal Plug
# of Pins: 3
Gauge: 22-14 AWG
Operating Temperature:-40 to +125°C
Environmentally sealed to IP67
Max. Current Rating (per contact): 22A
Superior performance under submersed water conditions
Designed primarily for thin-walled SAE automotive style wire
No additional wire seals, wedge locks or CPA locks are required
Application: Power, Wire-to-Board, Wire-to-Wire
Included:
1x Molex 3 Pin Wire Connector Male
1x Molex 3 Pin Wire Connector Female
3x Male terminals
3x Female terminals
