Purpose:

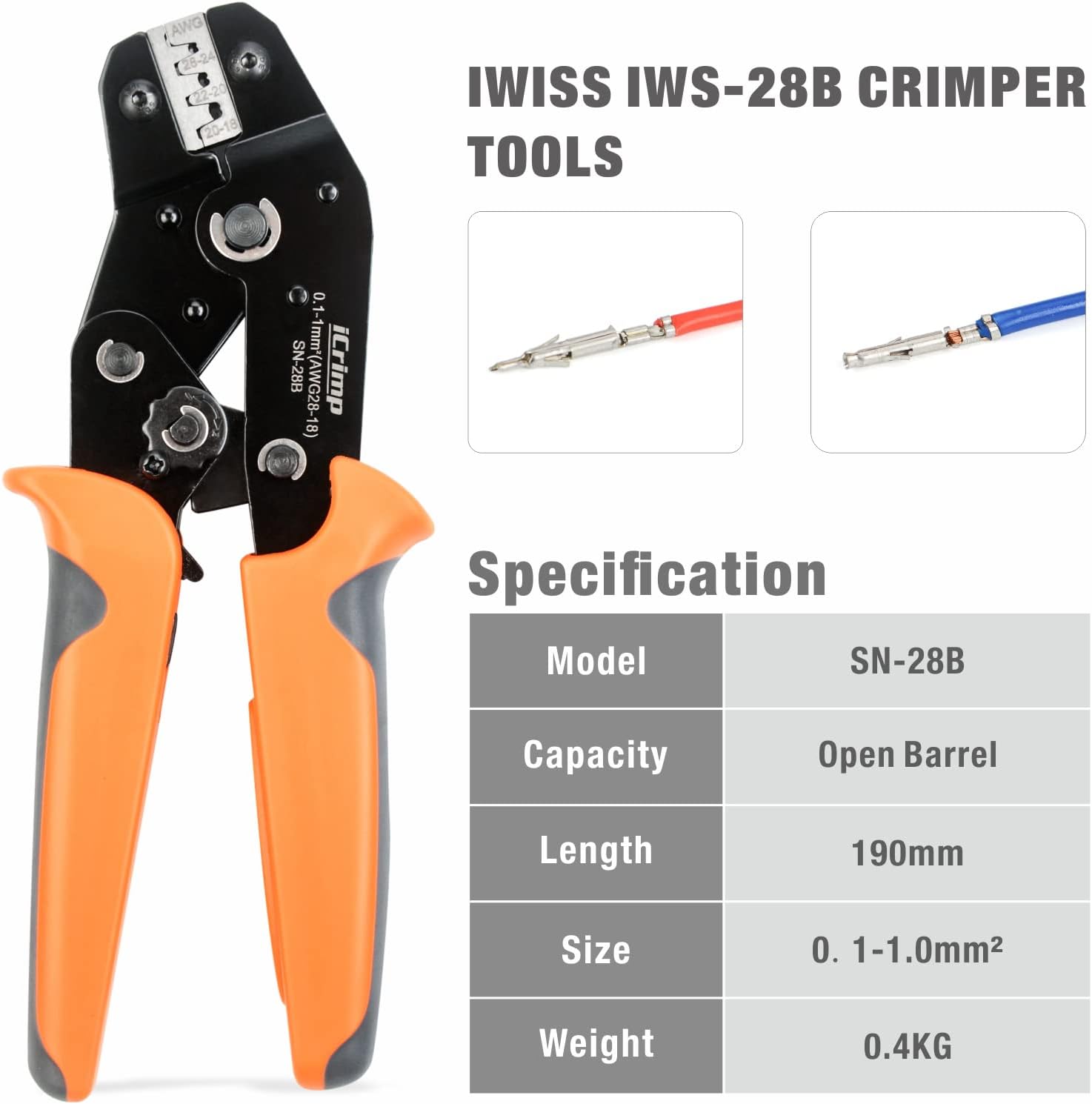

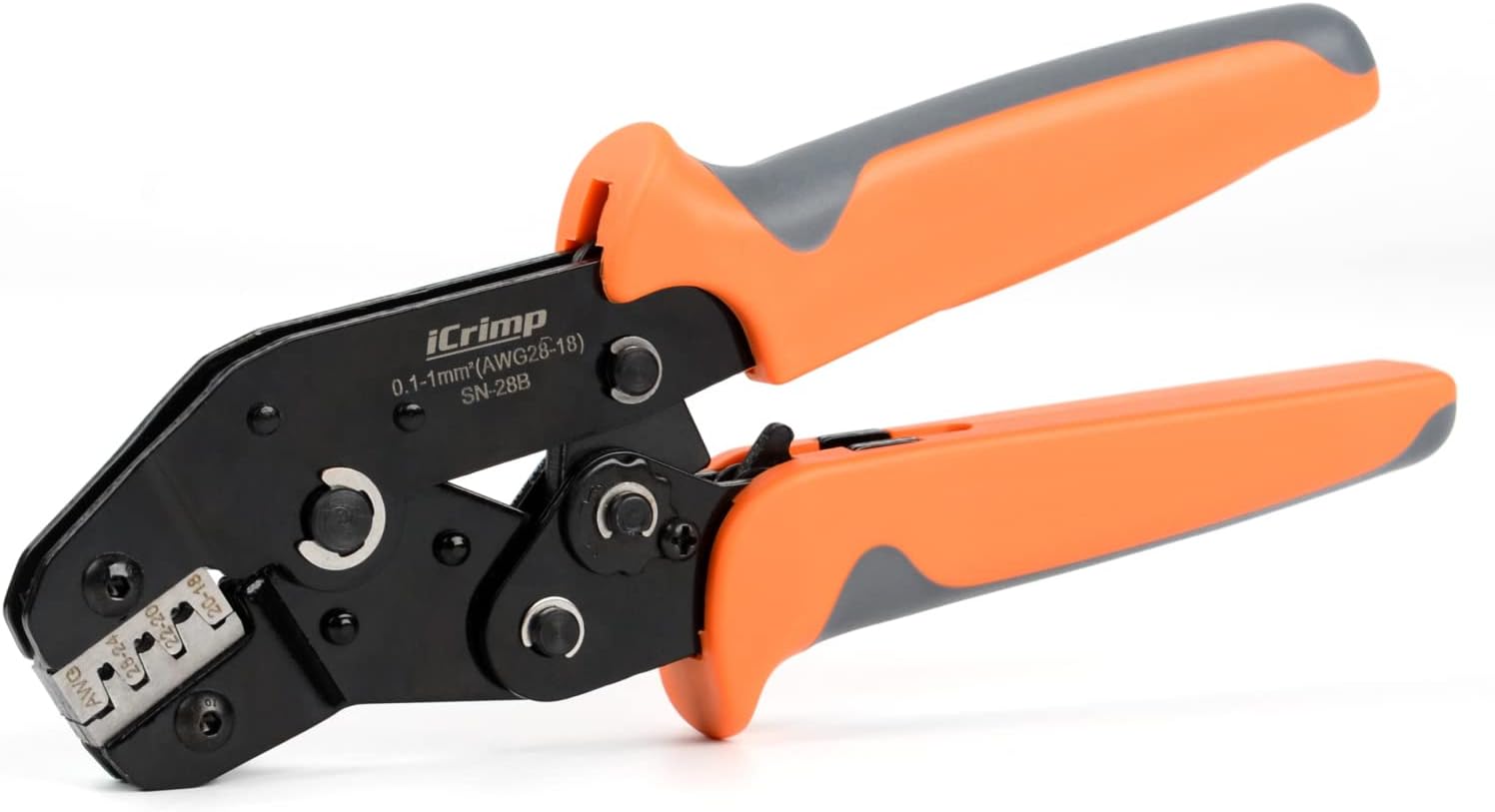

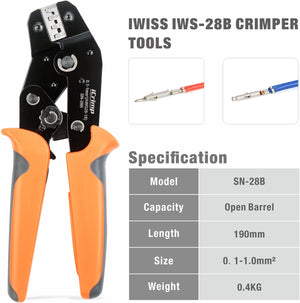

The SN-28B crimping tool is specifically designed for non-insulated, open barrel OEM-style terminals. It’s ideal for crimping servo lead connectors and various RC connector types.

Crimping Capacity:

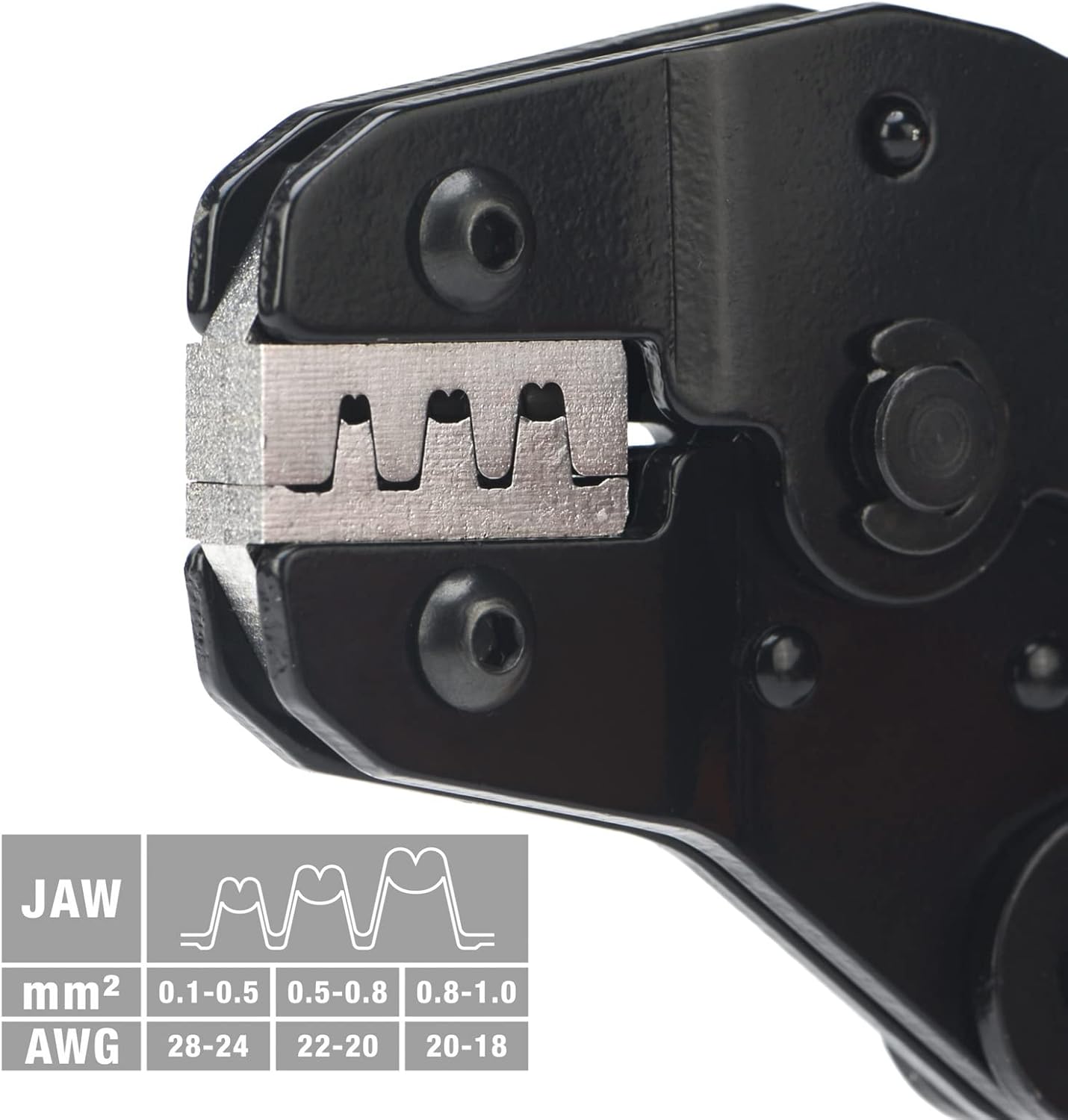

Supports wire sizes from 0.1 to 1.0 mm² (AWG 28–18). Compatible with 2.5mm, 2.54mm, and 3.96mm pitch terminals—commonly used with JST VH, XH, NH pins, and Dupont 2.54mm connectors.

Applications:
Commonly used for wiring connections in rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and remote-controlled servos.

Features:

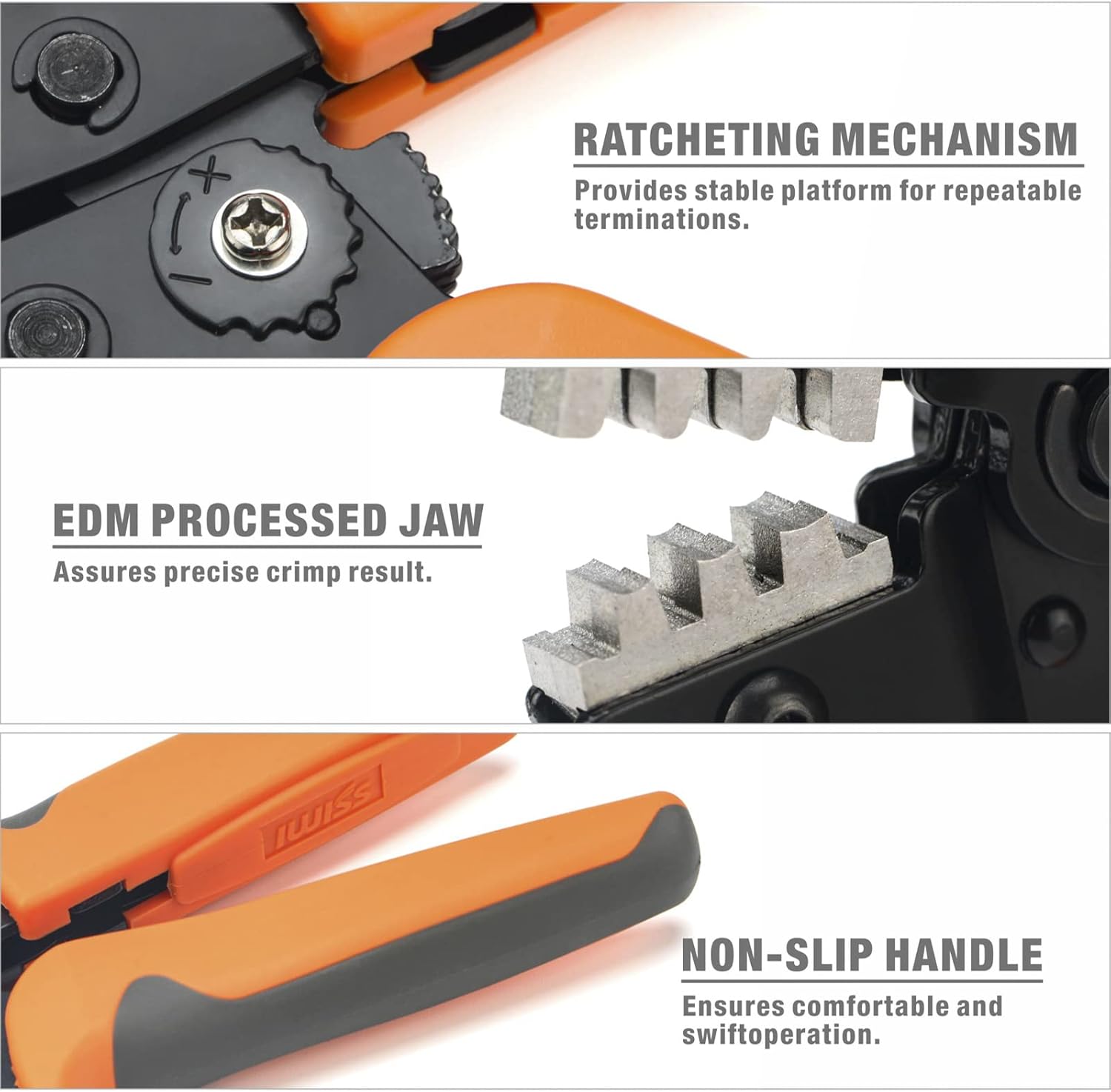

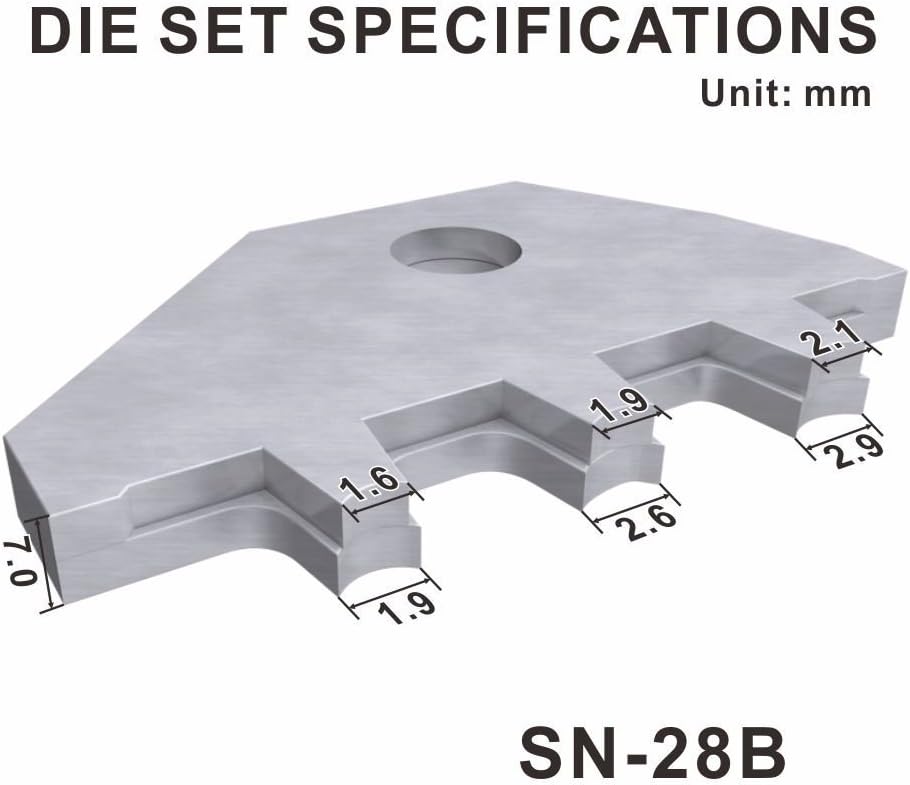

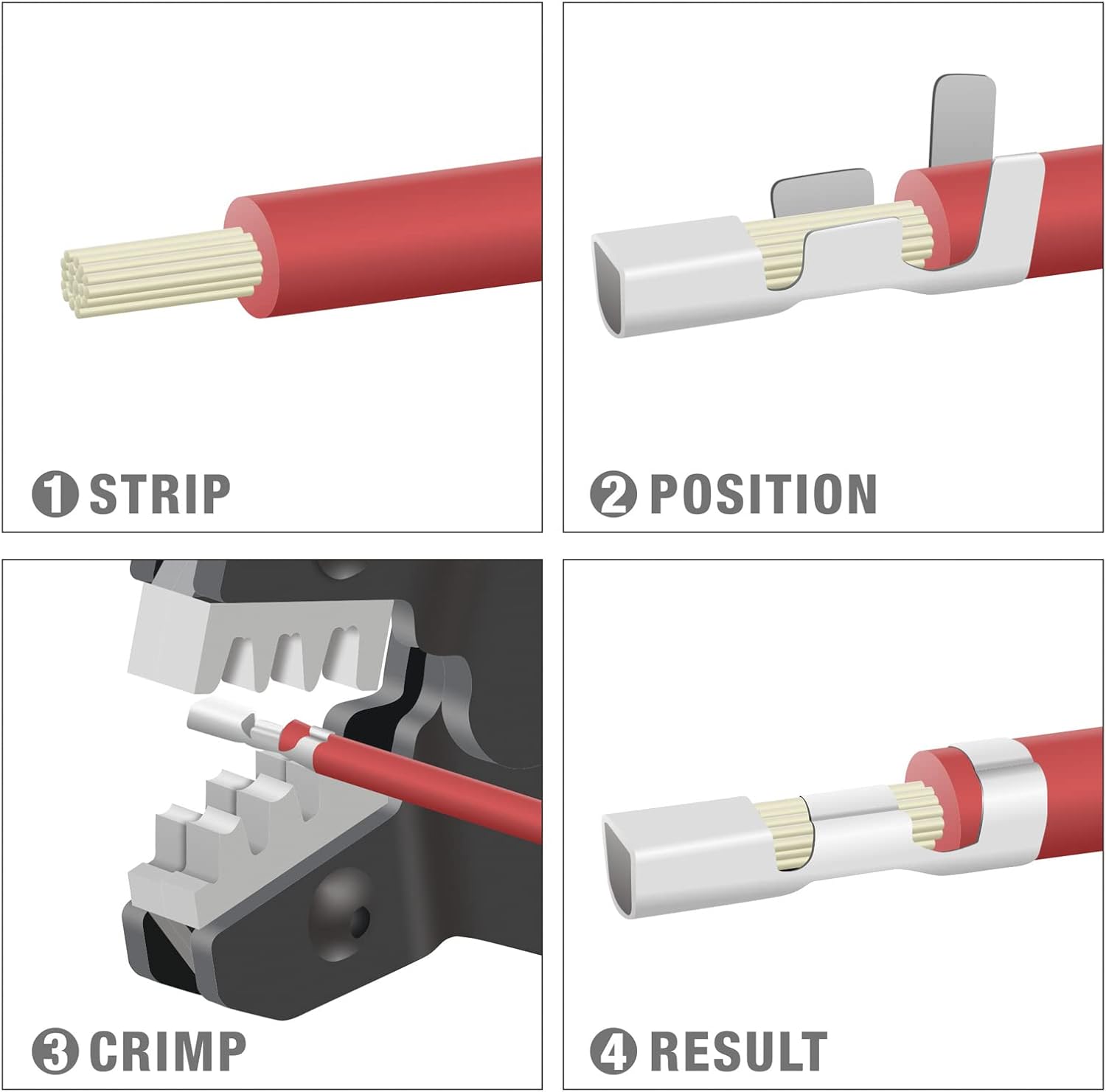

Provides consistent, high-precision crimps with its precision-engineered dies and integrated ratchet mechanism featuring a self-release function. The tool includes a 20° angled head for easier access in confined areas and delivers reliable, solder-free electrical connections.

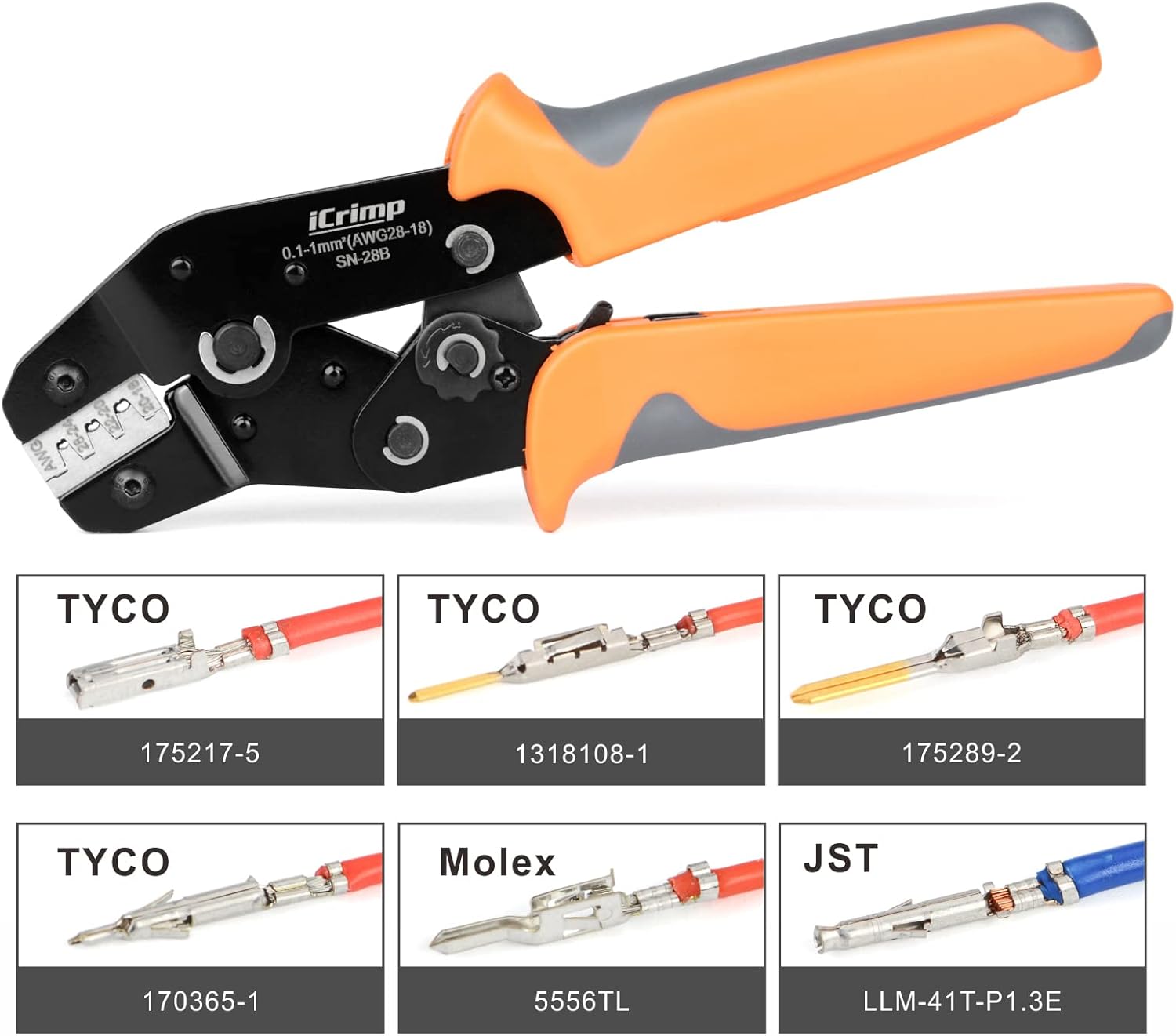

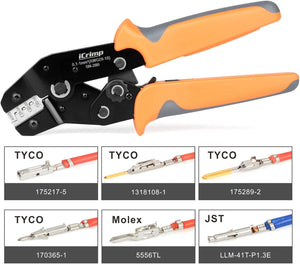

Terminal Compatibility:

• VH (3.96mm pitch): AWG 22–16

• RE (2.54mm pitch): AWG 30–24

• EH (2.50mm pitch): AWG 32–22

• XA (2.50mm pitch): AWG 30–20

• XH (2.5mm pitch): AWG 30–20
