These AdBlue quick connectors are available in both 90° angled and straight versions, with hose sizes of 9.49mm x 6mm, 7.89mm x 6mm, and 6.3mm x 6mm to suit a range of SCR system applications.

A red identification tab is used specifically for AdBlue systems (standard fuel connectors use grey tabs). Top-up packs of 3 pieces are available, with angled and straight variants offered under their respective part numbers.

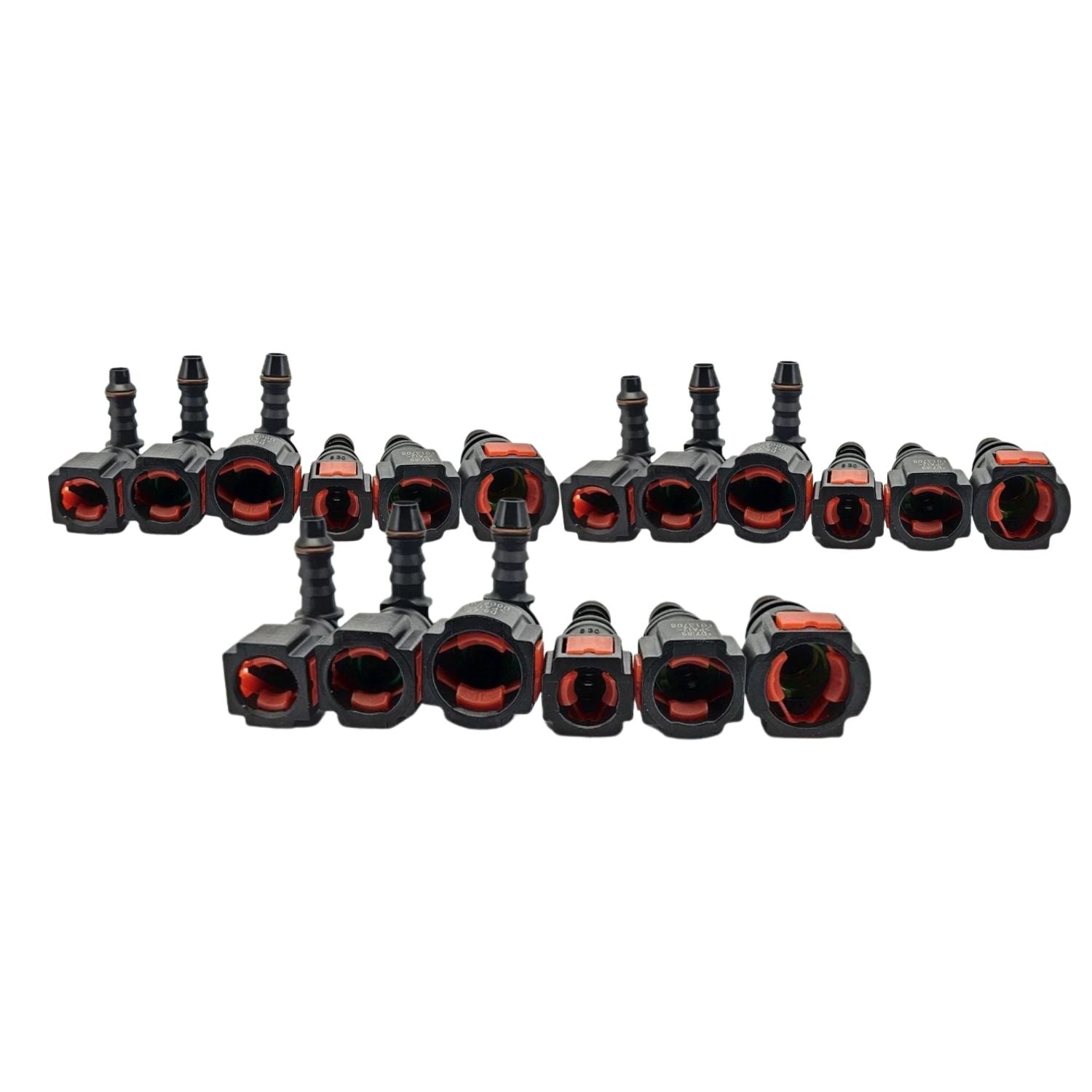

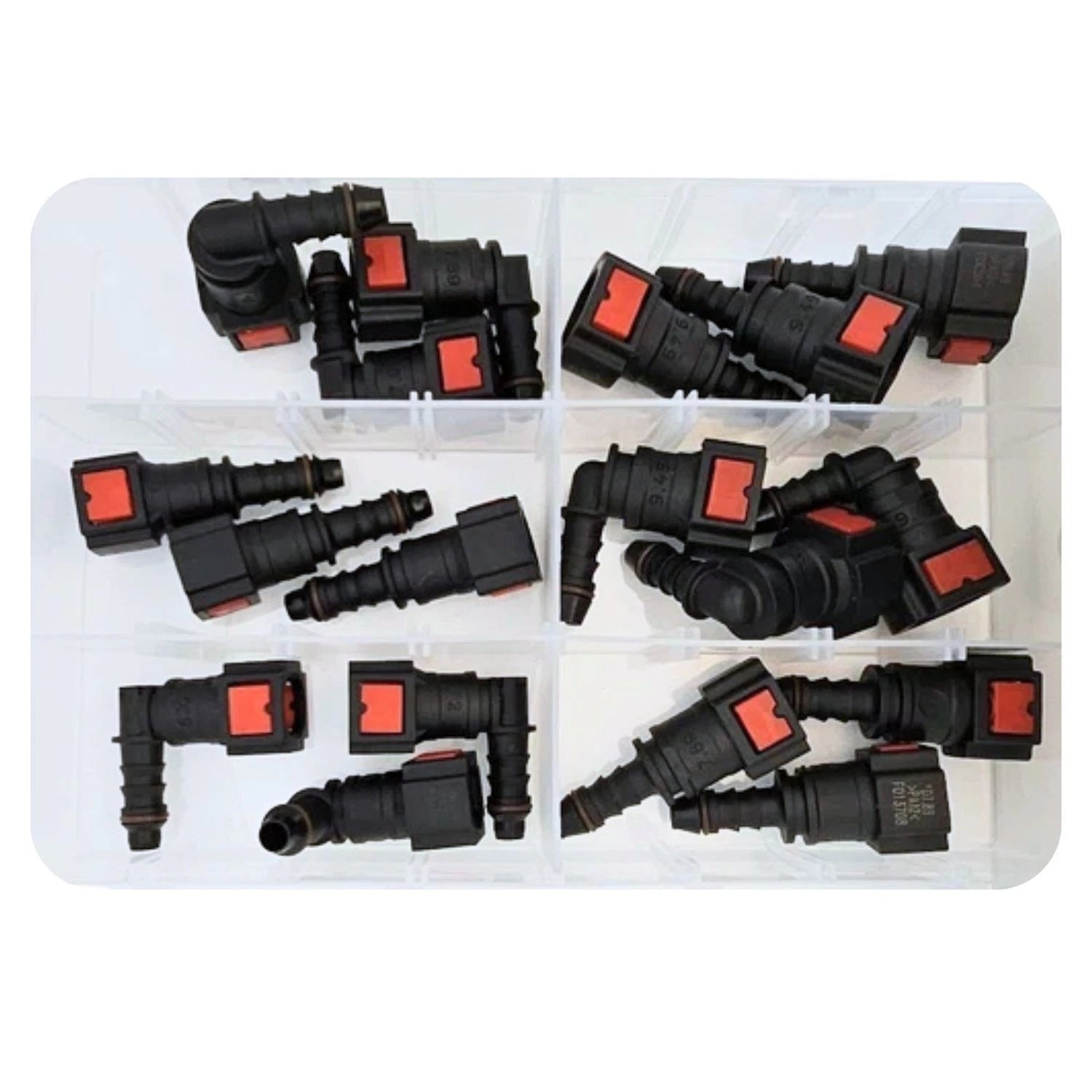

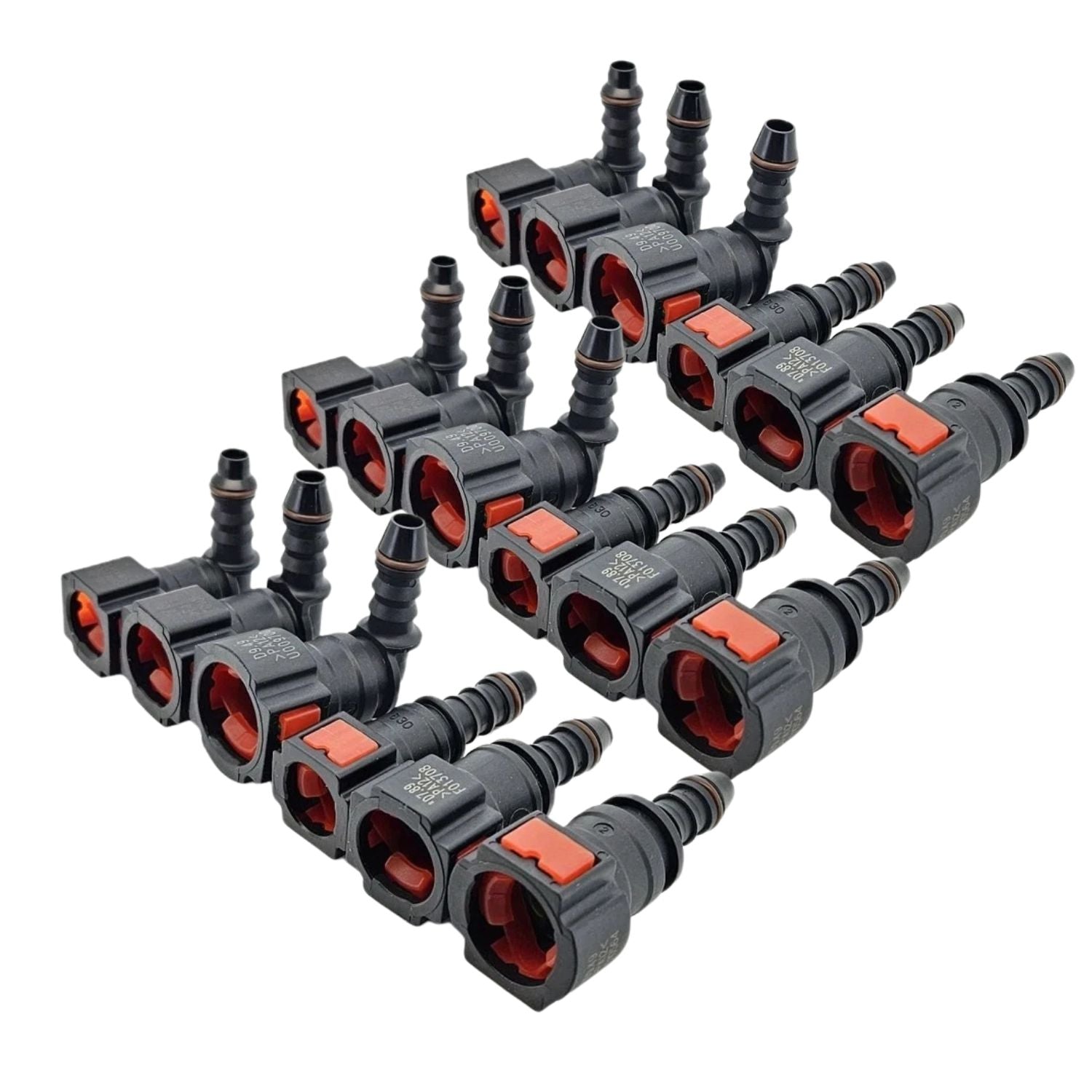

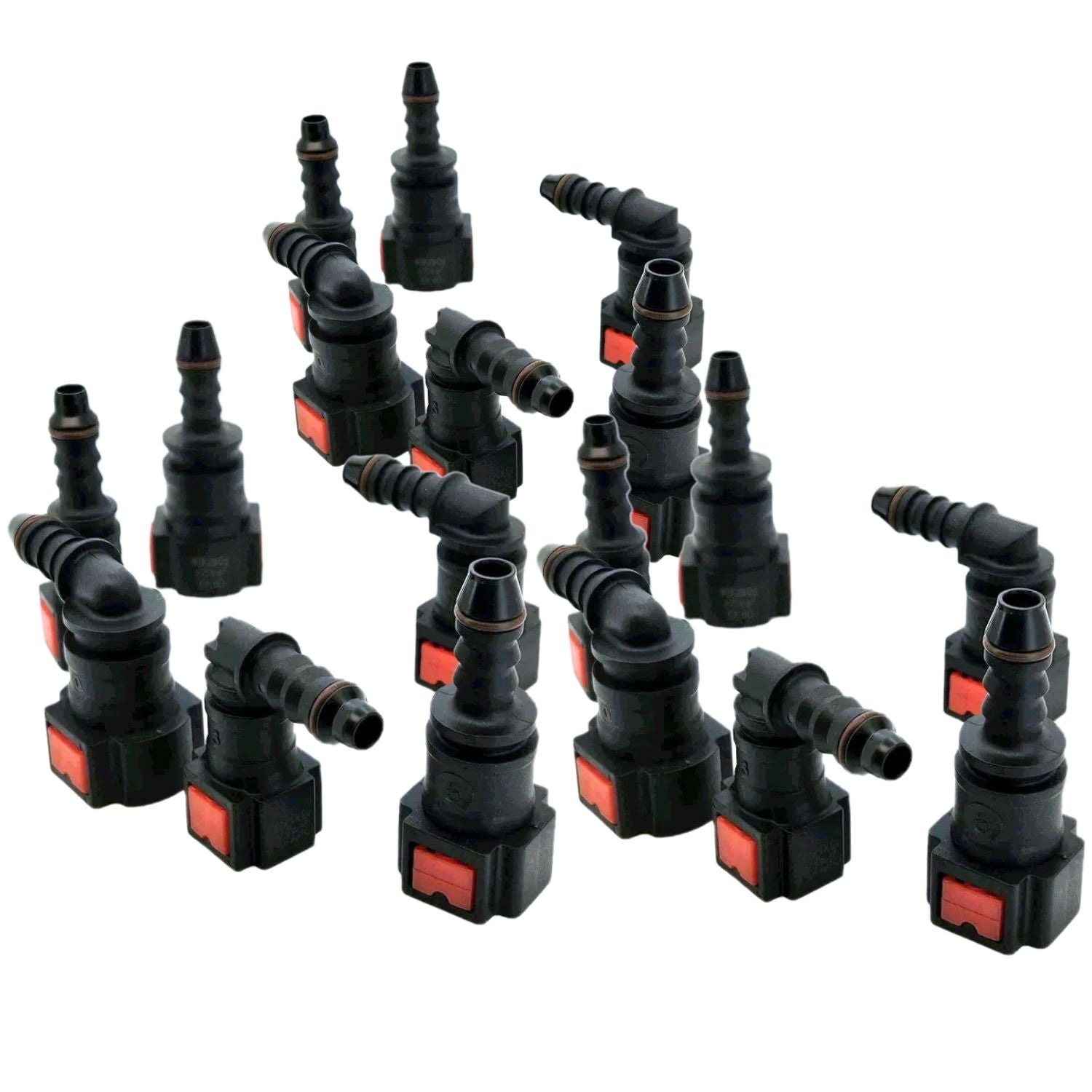

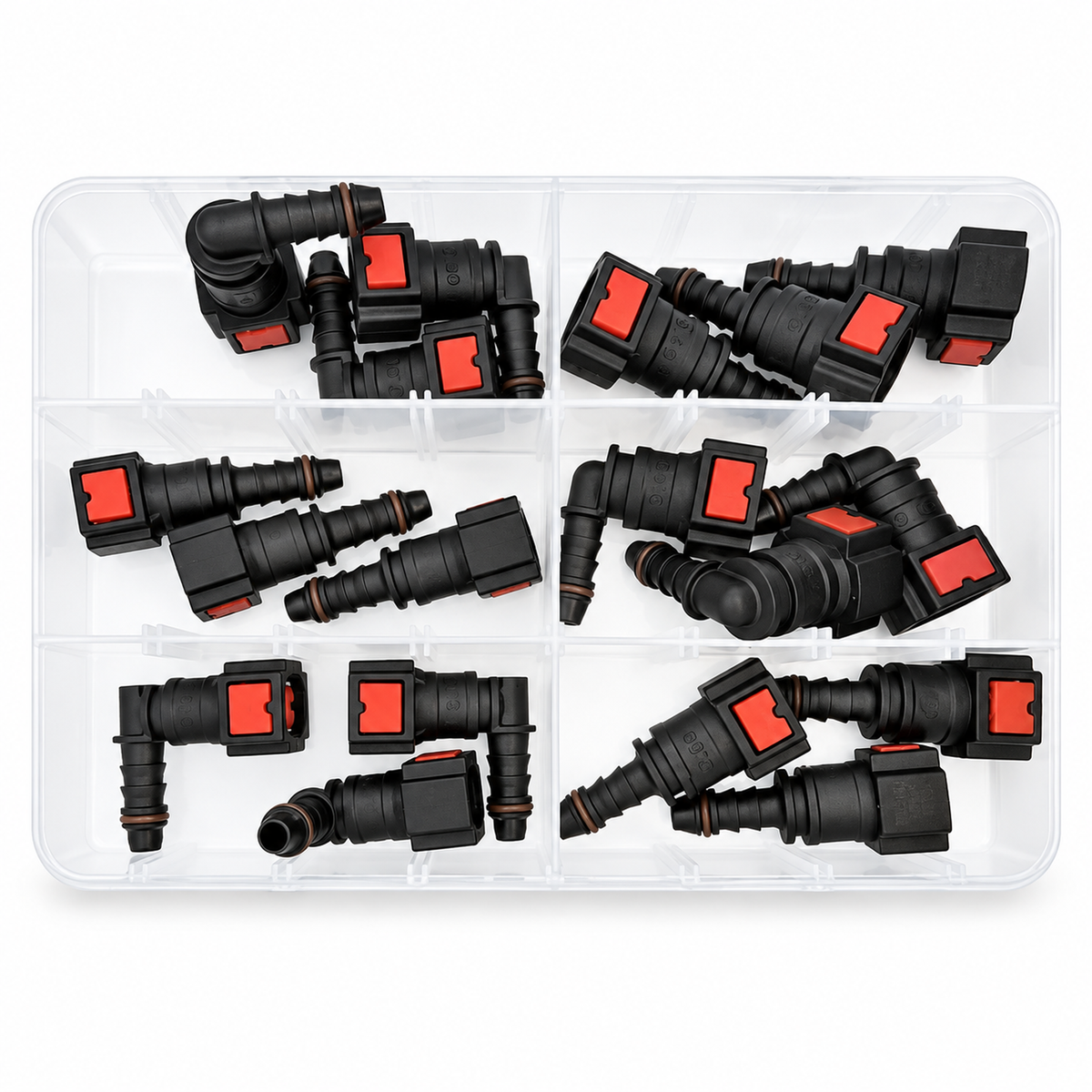

A mixed set of six straight and 90° AdBlue quick connectors designed for use with 6 mm inner-diameter fuel lines. The angled versions provide easier installation in confined areas, while all connectors allow fast, secure attachment thanks to their self-locking design. Suitable for automotive systems carrying fuel, oil, coolant, or air. Built to operate across a wide temperature range, preventing cracking or leaks under demanding conditions. For easier installation onto rigid plastic fuel pipes, a pipe-insertion tool is recommended.

Included Sizes:
• 90° AdBlue connectors: 9.49 mm × 6 mm, 7.89 mm × 6 mm, 6.3 mm × 6 mm
• Straight AdBlue connectors: 9.49 mm × 6 mm, 7.89 mm × 6 mm, 6.3 mm × 6 mm

Specifications:
• Continuous operating pressure: 7 bar (101 psi)
• Maximum pressure: 9 bar (130 psi)
• Temperature range: –40 °C to 70 °C
• Material: Nylon PA12 body with EPDM O-ring seal
• Red identification tab for AdBlue use
